TriVAX Basic
TriVAX Basic – Electrohydraulic quarter turn actuator for industrial valves

TriVAX Basic is a manual operated actuator with controlled spring return function. The spring return function is possible to be released by solenoid- and/or pilot valves. The closed and precharged hydraulic system allows to install the actuator in each mounting position and leads to long maintenance periods, which safe costs and time. TriVAX Basic is available also with linear motion.

TriVAX Basic at a glance
Technical data
Torque:
500 – 70000 Nm Spring ending torque
Ambient temperature:
-30 / +70° C – special execution for low temp. -60°C available
Voltages for solenoid valves:
selectable (limited by solenoid valve maker)
Certificates:
ATEX / IEC EX / CSA / CCC

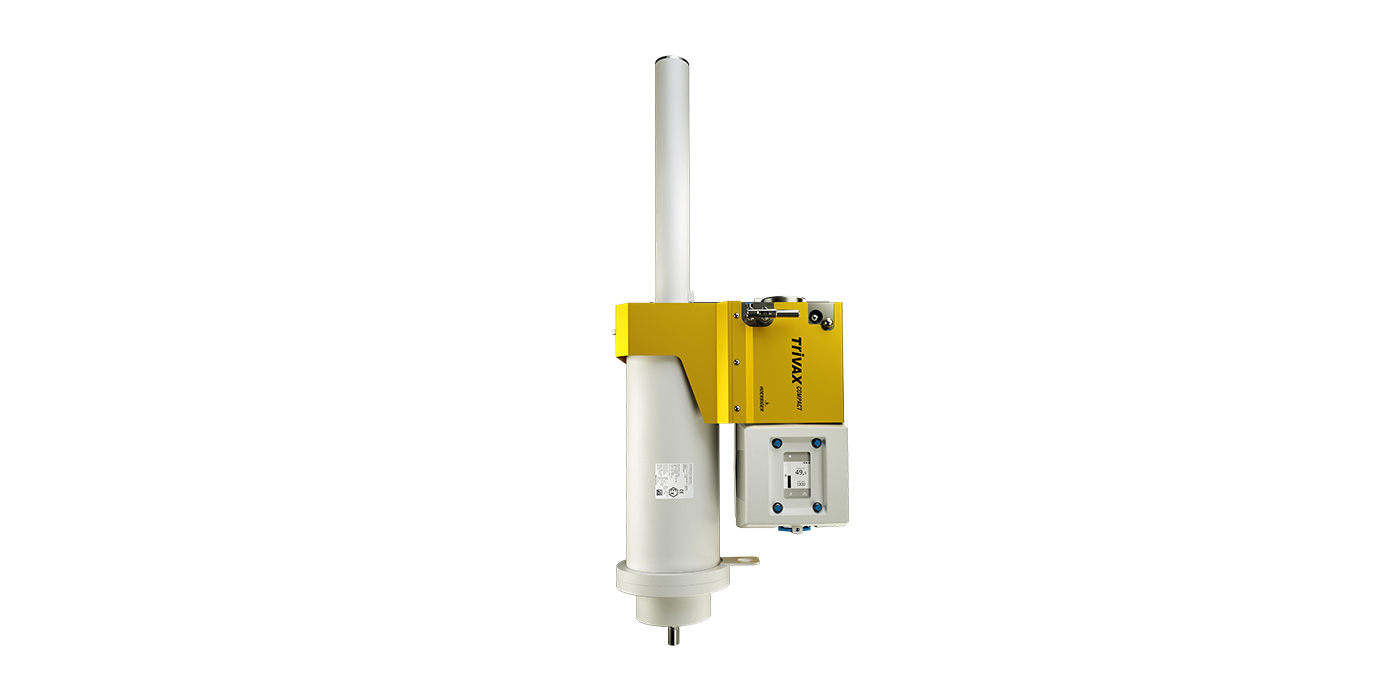

TriVAX Compact Linear – Electrohydraulic linear actuator for industrial valves

TriVAX Compact with it’s closed, precharged and piping free hydraulic system can be installed easily in any mounting position. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Compact is available also with quarter turn motion.

TriVAX Compact Linear
TriVAX Compact Linear at a glance
Technical data
Force:
4 – 16 kN spring ending force
Mechanical stroke length:
150 / 300 mm
Ambient temperature:
-30 / +70° C – special execution for low temp. -60°C available
Voltages: 24 V DC, 1ph:
110-140V / 230V – 50/60Hz
Voltages: 24 V DC, 3ph:
230V / 400V / 480V – 50/60Hz
Certificates:
ATEX / SIL / IEC EX / CSA / CCC

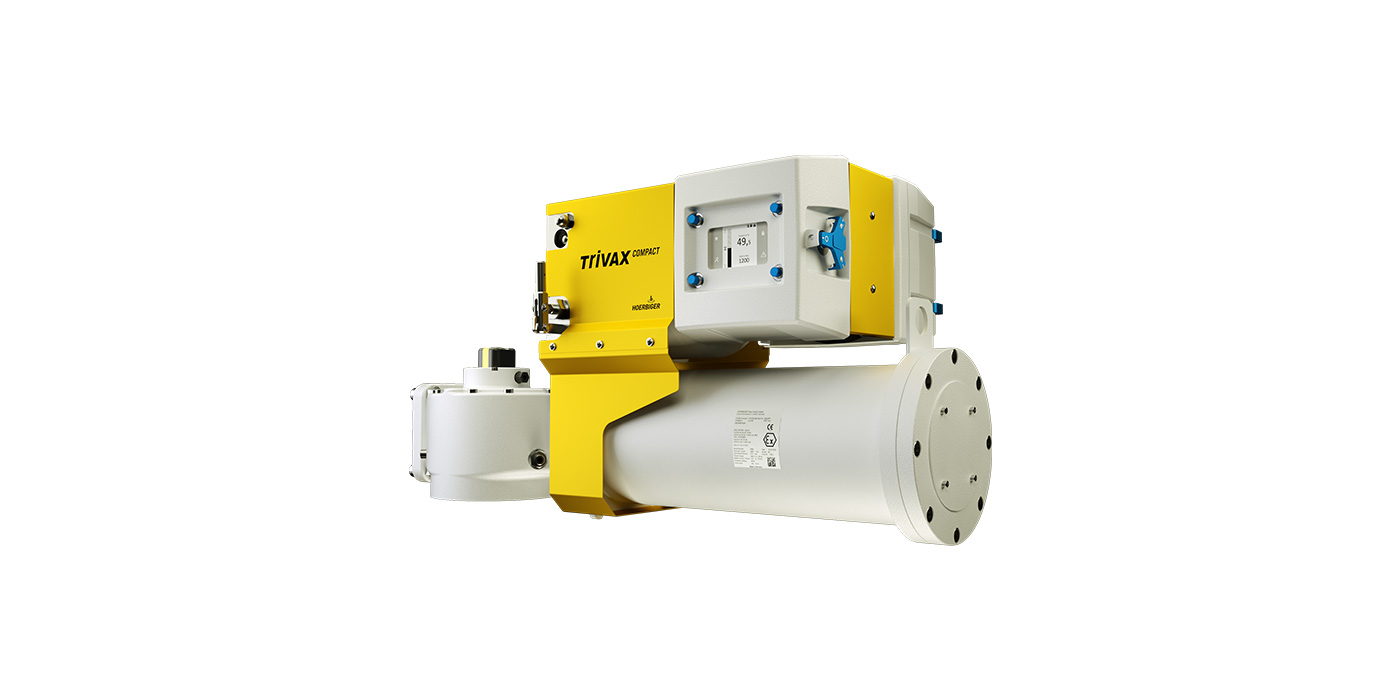

TriVAX Compact QT
TriVAX Compact QT – Electrohydraulic quarter turn actuator for industrial valves

TriVAX Compact with it’s closed, precharged and piping free hydraulic system can be installed easily in any mounting position. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Compact is available also with linear motion.

TriVAX Compact QT at a glance
Technical data
Torque:
500 – 6000 Nm - Spring ending torque
Ambient temperature:
-30 / +70° C – special execution for low temp. -60°C available
Voltages: 24 V DC, 1ph:
110-140V / 230V – 50/60Hz
Voltages: 24 V DC, 3ph:
230V / 400V / 480V – 50/60Hz
Certificates:
ATEX / SIL / IEC EX / CSA / CCC
TriVAX Compact QT
TriVAX Compact QT
TriVAX Flex – Electrohydraulic quarter turn actuator for industrial valves

TriVAX Flex can be configured individually. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Flex is available also with linear motion.

TriVAX Flex
TriVAX Flex at a glance
Technical data
Torque:
500 – 600000 Nm
Ambient temperature:
-30 / +70° C – special execution for low temp. -60°C available
Voltages: 24 V DC, 1ph:
230V – 50/60Hz
Voltages: 24 V DC, 3ph:
400V / 480V – 50/60Hz
Certificates:
ATEX / IEC EX
TriVAX Plus II
TriVAX Plus – Electrohydraulic quarter turn actuator for industrial valves

TriVAX Plus II with it’s closed, precharged and piping free hydraulic system can be installed easily in any mounting position. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Plus II is available also with linear motion.

TriVAX Plus at a glance
Technical data
Torque:
6000 – 70000 Nm Spring ending torque
Ambient temperature:
-30 / +70° C – special execution for low temp. -60°C available
Voltages: 24 V DC, 1ph:
230V – 50/60Hz
Voltages: 24 V DC, 3ph:
400V / 480V – 50/60Hz
Certificates:
ATEX / SIL / IEC EX / CSA / CCC

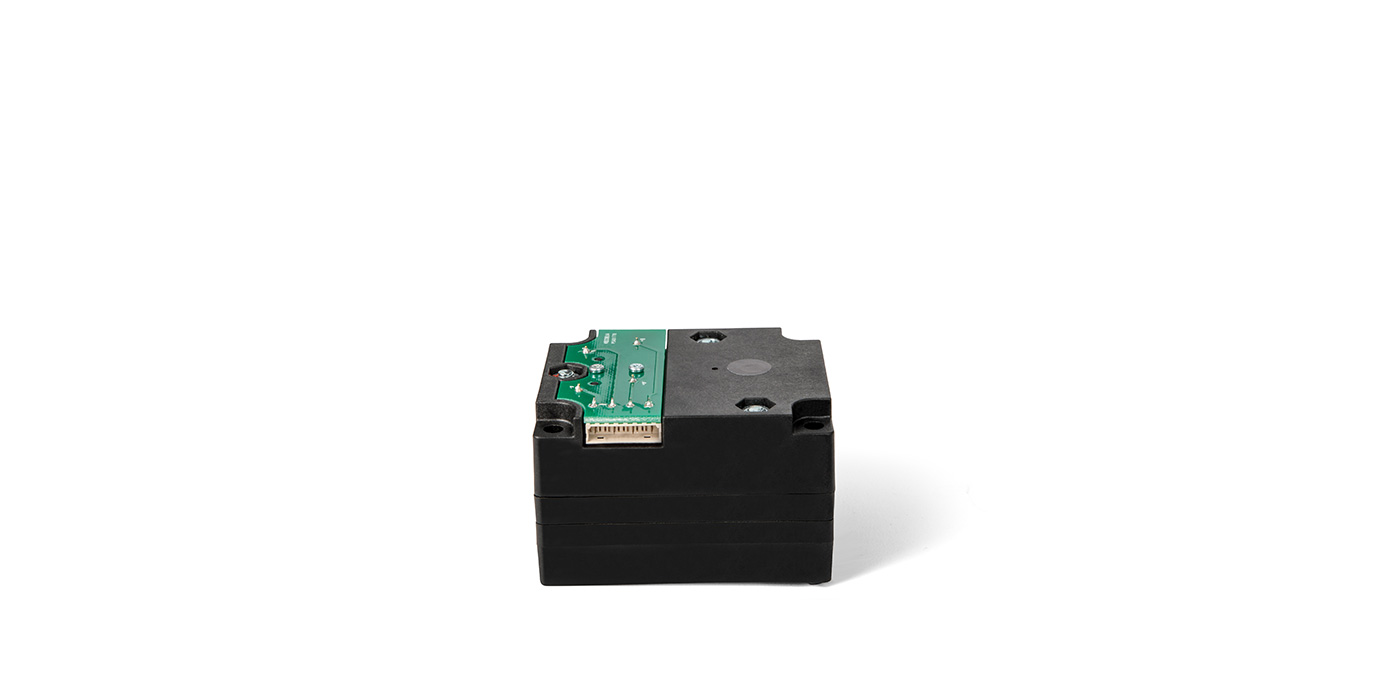

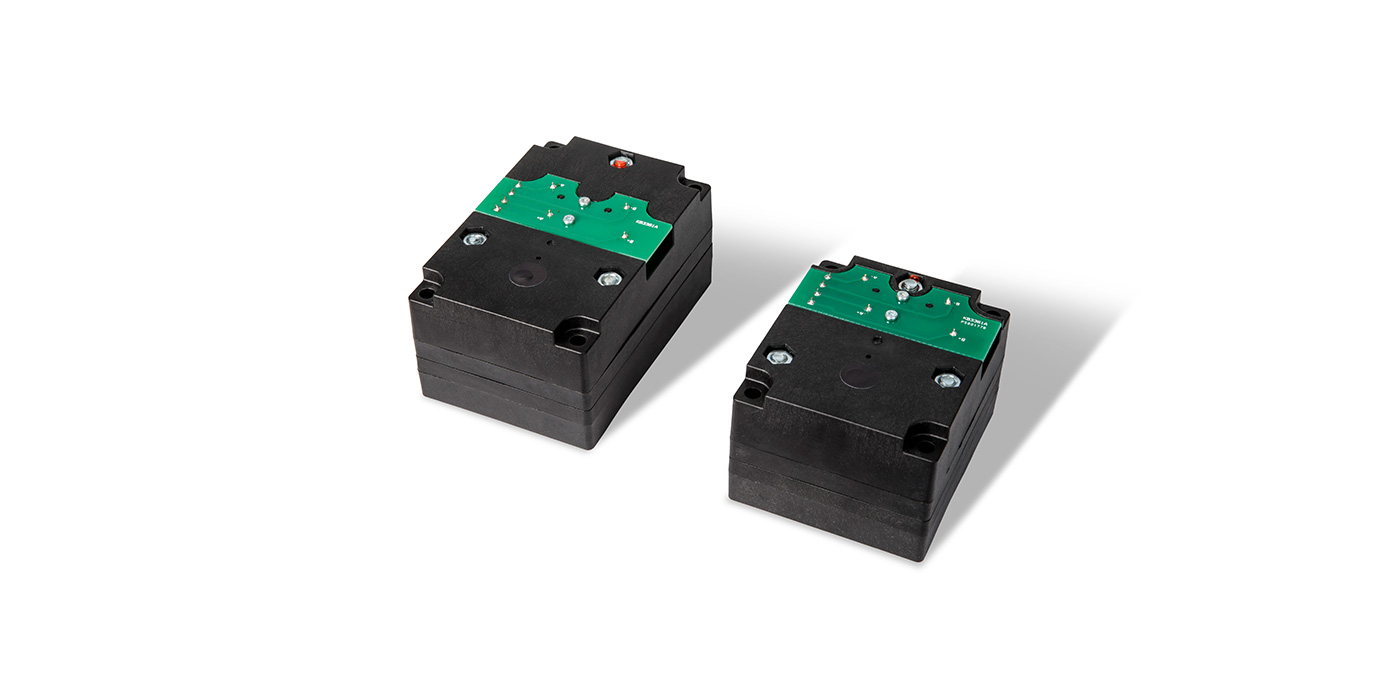

SMART POSITIONER MODUL – Standardized Switching Piezo-Pneumatic system for Smart valve positioners

Ready-to-install pneumatic modules for simple use in pneumatic smart valve positioners. HOERBIGER Piezo technology allows most energy efficient and lowest air consumption to realize any electric and pneumatic fail-safe functions. Over the past 20 years more than 1.5 Mio. piezo modules have been installed successfully.

SMART POSITIONER MODUL
SMART POSITIONER MODUL
SMART POSITIONER MODUL at a glance
Technical data
 Size Single Acting:
55 x 65 x 42 mm
 Size Double Acting
55 x 81 x 42 mm
Temperature:
-25… +80 °C (-40 °C optional)
Weight Single Acting:
0,145 kg
Weight Double Acting:
0,170 kg
Certifications:
suitable for intrinsically safe applications according IECEx
