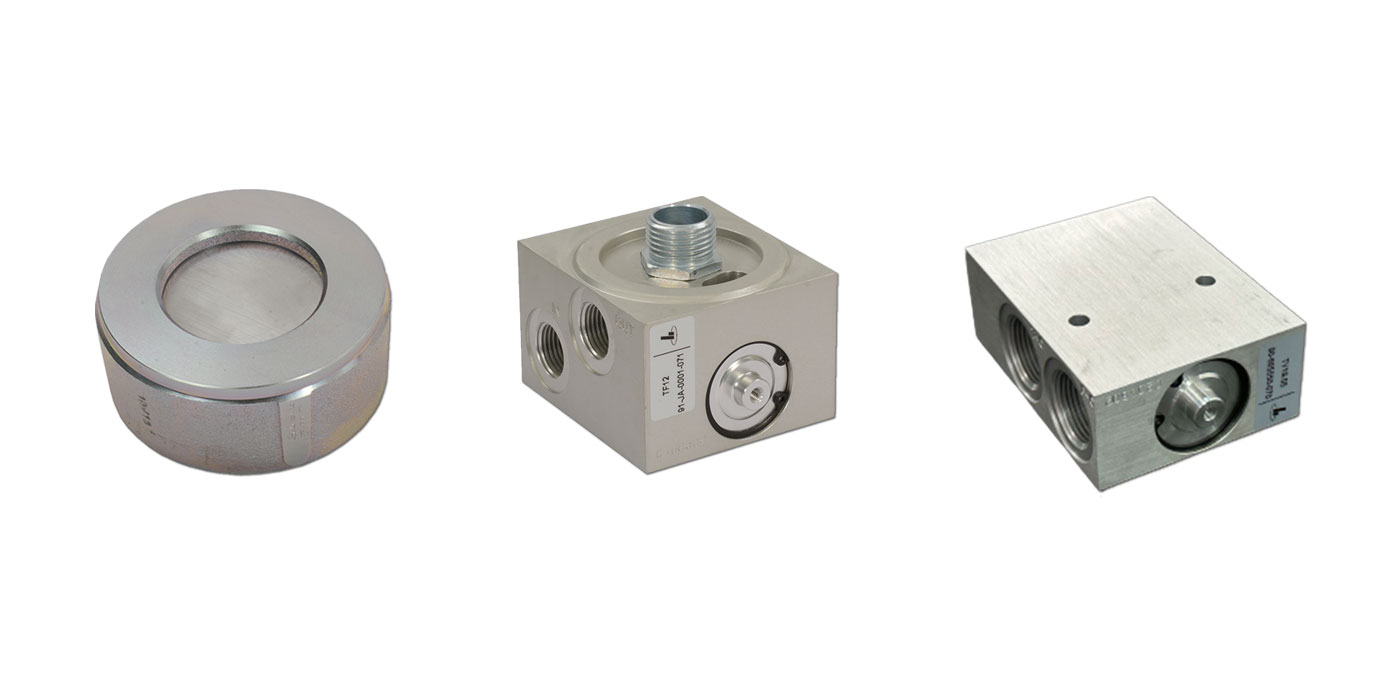

Oil circuit
for oil injected screw compressors
Check valve A-type
Short profile
Ensures one way flow for the medium (air and oil mixture)
Technical data
- Maximum working pressure:
- Standard 16 barg I 232 psig
High pressure up to 63 barg I 915 psig - Ambient temperature:
- -20 to + 200 °C I -4 to 390 °F
- Nominal diameter:
- 50 to 150 mm I 2 to 6 in

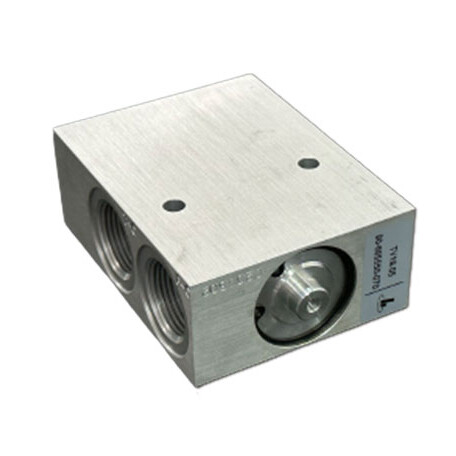

Thermostatic valve
Short profile
Regulation of the oil temperature in the designed range by varying the oil flow through the oil cooler

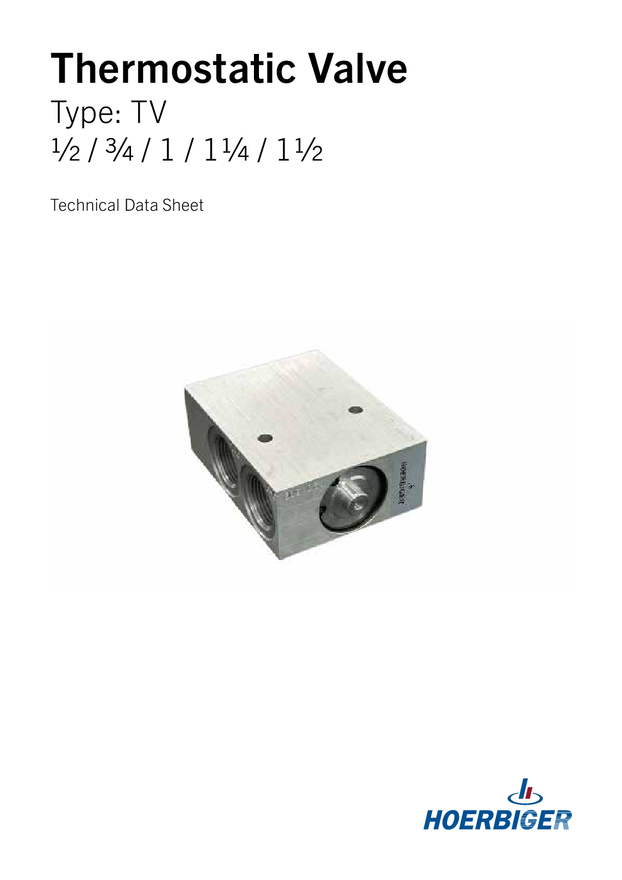

TV:
Pure thermostatic valve with regulation function only

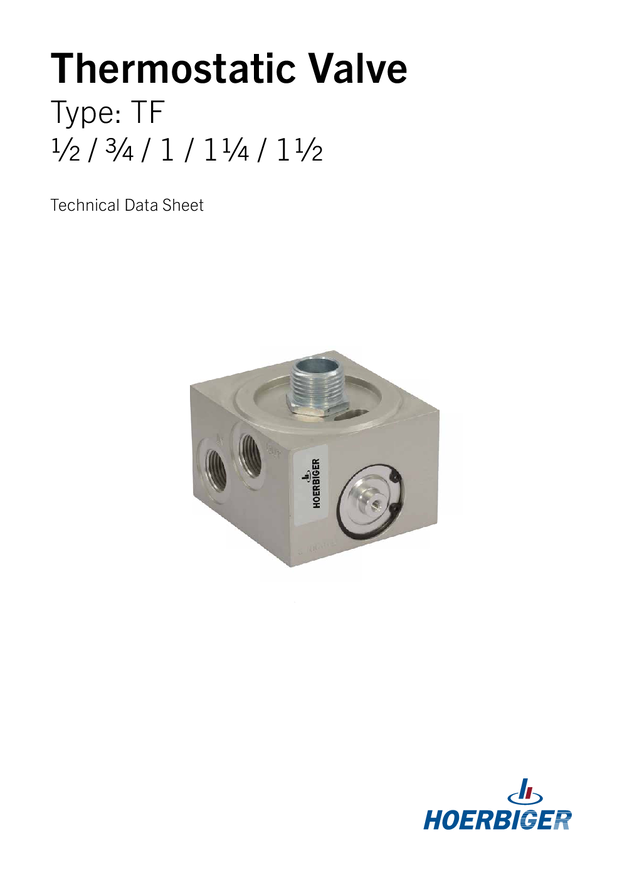

TF:
Regulation of oil temperature with additional oil filtration using a spin-on filter
Technical data
- Maximum working pressure:
- 16 barg I 232 psig
- Ambient temperature:
- -20 to + 120 °C I -4 to 248 °F
- Thermostat setting:
- 55 to 70 °C I 131 to 158 °F
70 to 85 °C I 158 to 185 °F
71 to 80 °C I 160 to 176 °F
73 to 88 °C I 163 to 190 °F - Oil flow:
- 45 to 400 l/min I 12 to 106 gal/min
- Port size:
- ½ to 1 ½ in
Check valve A-type
TV — Thermostatic valve
TF — Thermostatic valve with filter arrangement
