AdaptH2 system
For ultra-lean H2 combustion enabling high performance H2 ICEs with zero emissions (CH4 suitable).
Gain back the 20-30% of performance loss
Injectors and ignition systems are critical components for hydrogen internal combustion engines (H2 ICE), which are seen as a viable alternative to fuel cells for mid to heavy-duty applications due to their robustness and power delivery. HOERBIGER and Altronic (a member of the HOERBIGER Group), in cooperation with Prometheus Applied Technologies, provider of hydrogen combustion system know-how, are now advancing development of a solution for hydrogen ignition with prototypes already being available!

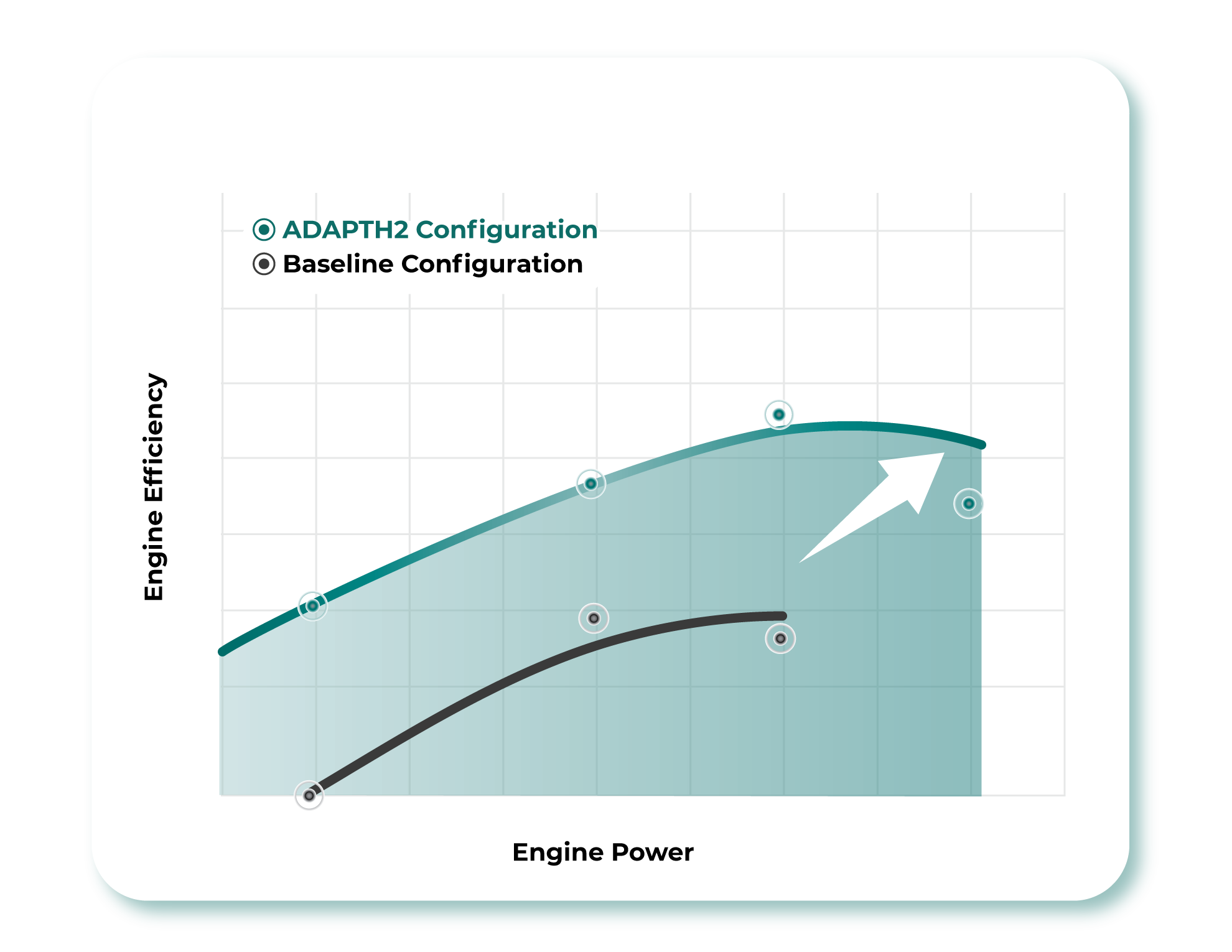

Currently, the performance of H2 ICEs faced difficulties resulting in 20 to 30% loss in power density and efficiency due to combustion instabilities. To overcome these difficulties and to achieve power and efficiency parity with diesel engines the AdaptH2 consists of 3 major components:
- Injectors with an adaptable nozzle design for a homogeneous injection of H2
- A predictive same cycle spark ignition control for proper ignition and prevention of hot spots
- A unique prechamber design for fast combustion of ultra-lean flames
![AdaptH2 AdaptH2 Hoerbiger hydrogen](https://www-prod.hoerbiger.com/_Resources/Persistent/7/e/1/2/7e12c1bdac94c0ddf9c974152ecf1396c2918a84/chart_prometheus.png)
![AdaptH2 Hoerbiger hydrogen AdaptH2 Hoerbiger hydrogen](https://www-prod.hoerbiger.com/_Resources/Persistent/7/b/f/e/7bfe712f6bfffcc4a113a6d67c0b69c47eb3264d/Engine-Flowb.png)

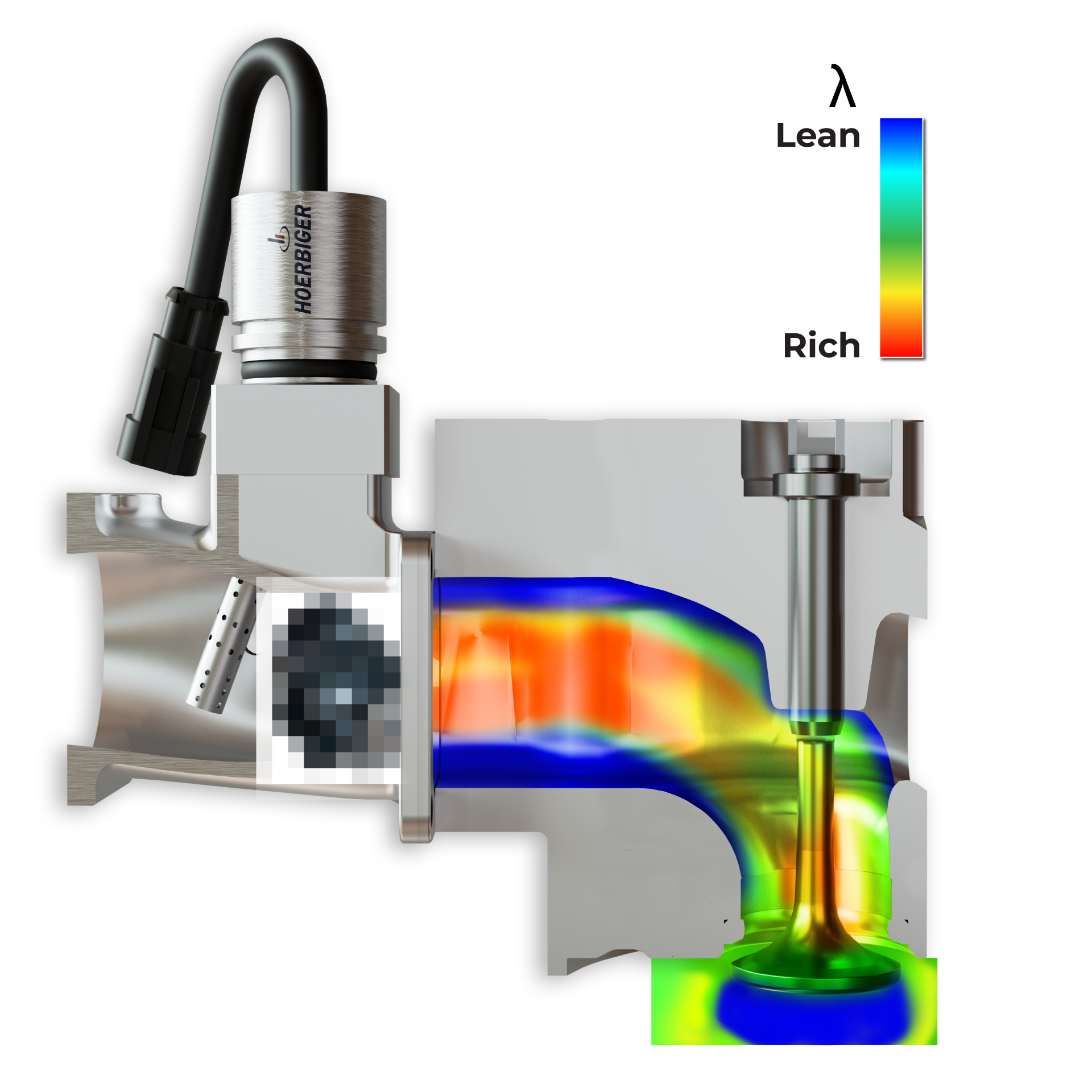

Having homogenous mixtures is key to prevent the occurrence of LOP at BMEP levels. The sophisticated HOERBIGER H2 PFI injection system ensures a homogeneous H2 or CH4 mixture preventing rich pockets and combustion instability.
To ensure proper ignition of ultra-lean H2 mixtures and preventing hot spots on the electrodes the Altronic ignition system delivers an adaptive spark energy with same-cycle spark control. It predicts the start of combustion (SOC) and adjusts the spark energy keeping a constant SOC and reducing electrode surface wear.
![AdaptH2 Altronic Hydrogen Ignition AdaptH2 Altronic Hydrogen Ignition](https://www-prod.hoerbiger.com/_Resources/Persistent/6/e/0/a/6e0aa62c0d17303387d8d9931958349ea15531f1/Closed-Loop3.png)
![AdaptH2 Prometheus prechamber hydrogen AdaptH2 Prometheus prechamber hydrogen](https://www-prod.hoerbiger.com/_Resources/Persistent/4/d/d/3/4dd33bfeeb96385b64284bc0e1d46748238554b8/Prometheus%20Prechamber%20Flow%20small2.png)

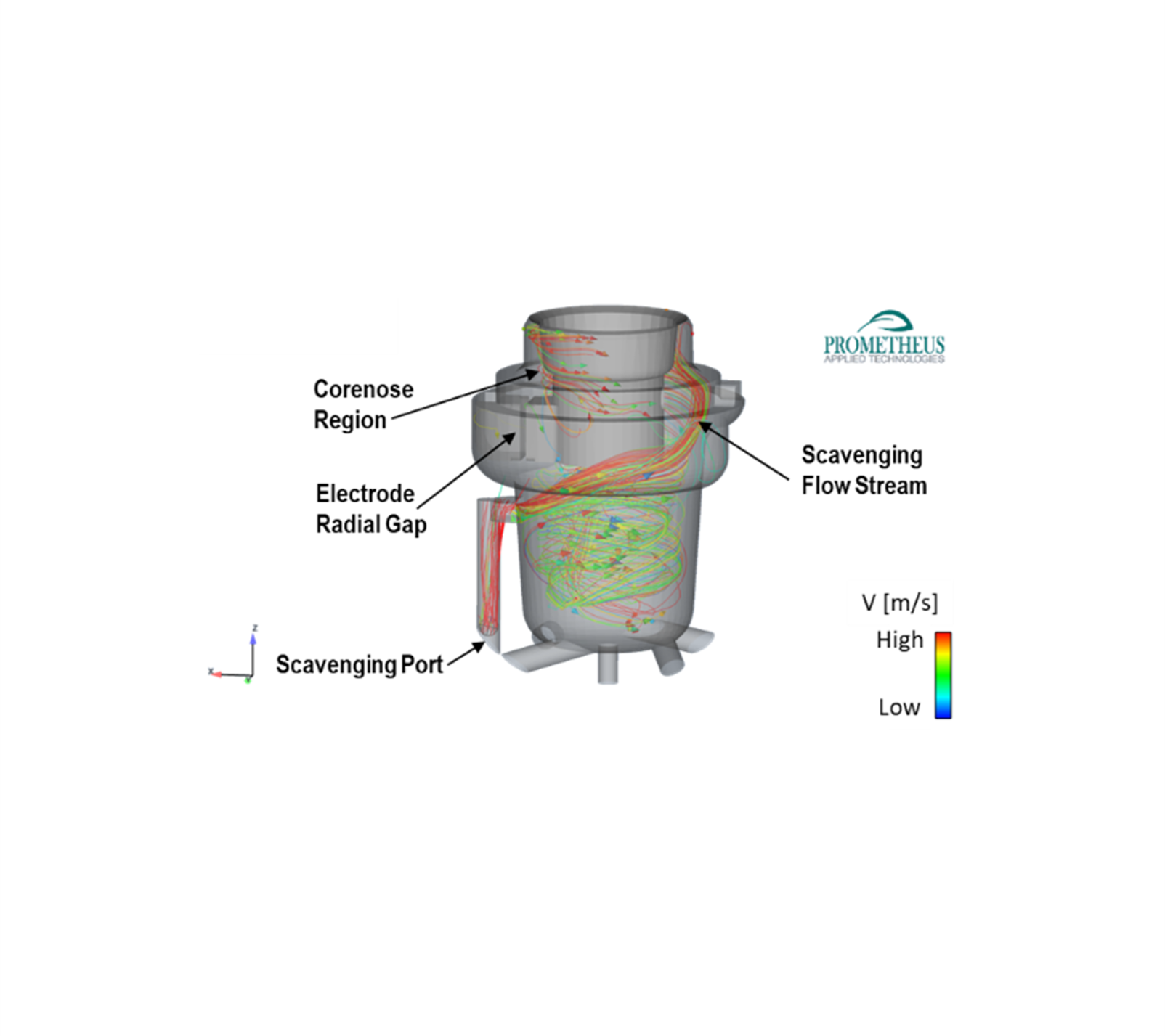

H2 mixtures must operate ultra-lean to achieve high efficiencies. The in the AdaptH2 system innovatively designed prechamber ignition device greatly enhances combustion speed of ultra-lean mixtures. Additionally, the unique design eliminates fuel residues avoiding preiginition.
